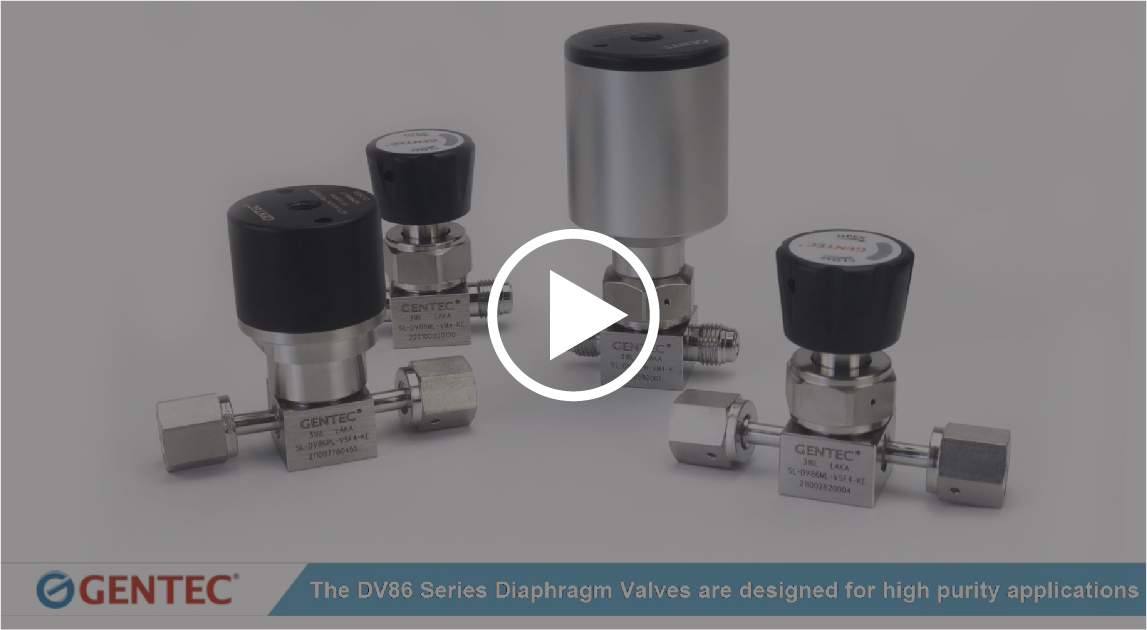

DV86 Series
Stainless Steel Ultra High Purity Diaphragm Valves
Features
• Suitable for ultra high purity applications
• Both manual and pneumatic actuation are available
• End connections: Face seal fittings (FSR) and butt welded
• Internal spring-less design and metal-to-metal seal minimizes particle generation and ensures "purity integrity" in the flow passages
• Cleaned and degreased for oxygen service according to CGA G-4.1 and ASTM G93 Class C, respectively
• Long service life
• 100% Helium leak tested
* Standard Material
** Vespal® seat is recommended for Nitrous Oxide (N2O) service but is not available for low pressure pneumatic actuation.
