Dual-Bank Manifold Systems

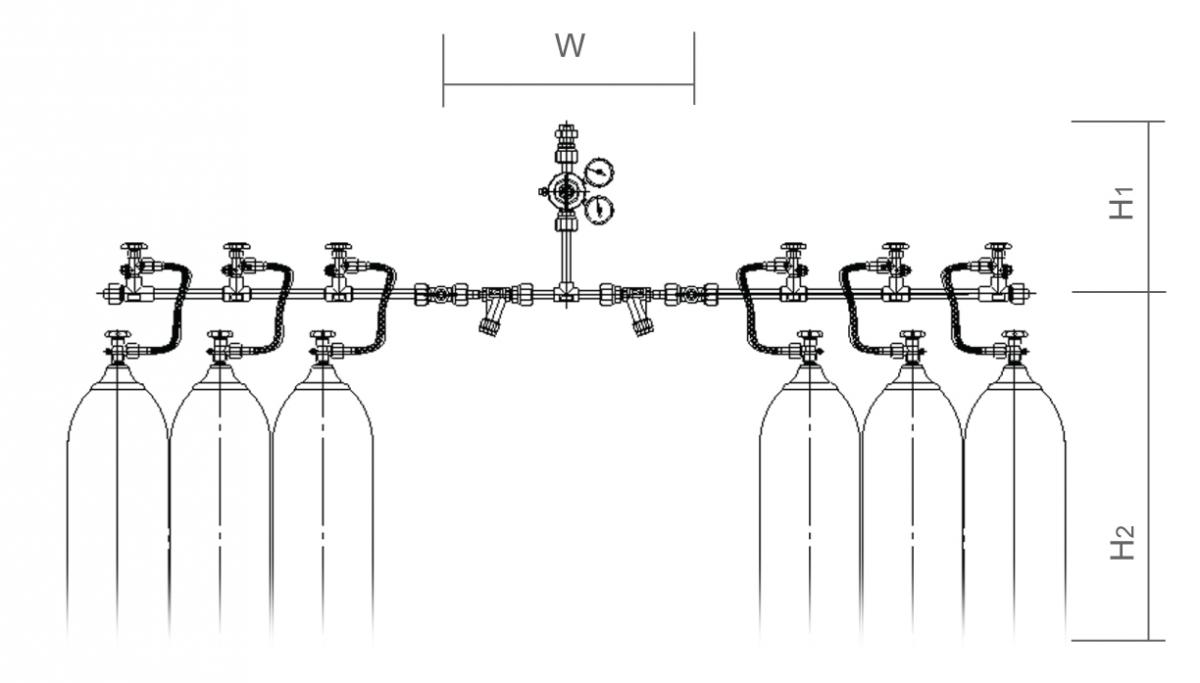

52300 series dual-bank manifold system consists of a main gas delivery bank and a reserve bank of cylinders. When the primary cylinder bank is depleted, manually "turn off" the valve on the primary bank and open the valve on the reserve bank to reactivate gas flow. The changeover of this system needs to be operated manually.
Features
Features
• Open-style manifold
• Silver brazing on piping joints for maximum leak prevention
• System is designed to accomodate future expansion needs
• System is mounted with gas filters
• Pressure switch port is available
• Headers have been tested to withstand high cylinder pressure
• Wall or floor mount available
Standard Construction
• 24" flexible high pressure stainless steel braided pigtails with check valve, Rigid copper pigtails are standard when gas service is oxygen. Pigpails for acetylene models are equipped with dry flashback arrestor.
• Gentec's high flow regulator series 155M-A.
• Carbon Dioxide manifold systems are provided with a 155CG electric heating regulator. Siphon cylinder should not be used in the manifold system.
Inquire about this product
Hours
Phone
Fax
Address
Chino, CA 91710, USA
Ordering Information
| 53 | 1 | 2 | X | - 5L - 5R | - 1 |
| Series | Manifold System Layout | Cylinder Valve Spacing | Gas Service | Number of Cylinders (left-hand / right-hand) | Type of Mounting |

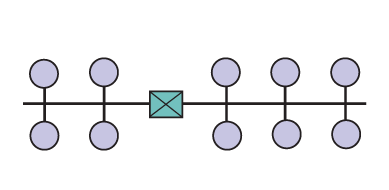

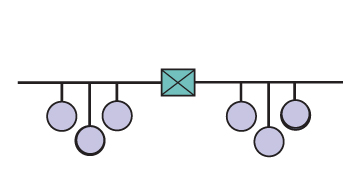

| Dual-bank Manifold System | 1: Standard layout 2: "L" Shape layout 3: "U" Shape layout 4: Crossover layout 5: Staggered layout | 1: 5" (127 mm) 2: 10" (254 mm) 3: 13" (330 mm) 4: 18" (457 mm) | X: Oxygen C: Carbon Dioxide IN: Ar, He, N2 Q: Air H: Hydrogen | 1L-2R: One cylinder on the left, Two cylinders on the right 5L-5R: Five cylinders on the left, Five cylinders on the right Note: Direction of piping (Righ tor Left) is indicated by facing the manifold. | 1: Wall mount 2: Floor mount |
Specifications
| Series | Gas Service | Max. Inlet Pressure psi (bar) | Delivery Pressure psi (bar) | Max. Delivery Flow SCFH (m3/h) | Outlet Connection | Pigtail Specifications |
| 5300X | Oxygen | 3000 (207) | 10~200 (0.7~14) | 3500 (100) | 3/4" NPT (M) | Pigtail, CGA540 |
| 5300C | Carbon Dioxide | 3000 (207) | 5~125 (0.35~8.6) | 2100 (60) | 3/4" NPT (M) | Pigtail, CGA320 |
| 5300IN | Argon, Nitrogen, Helium | 3000 (207) | 10~200 (0.7~14) | 3500 (100) | 3/4" NPT (M) | Pigtail, CGA580 |
| 5300Q | Air | 3000 (207) | 10~200 (0.7~14) | 3500 (100) | 3/4" NPT (M) | Pigtail, CGA590 |
| 5300H | Hydrogen | 3000 (207) | 10~200 (0.7~14) | 10500 (300) | 3/4" NPT (M) | Pigtail, CGA350 |
Restrictions
WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
