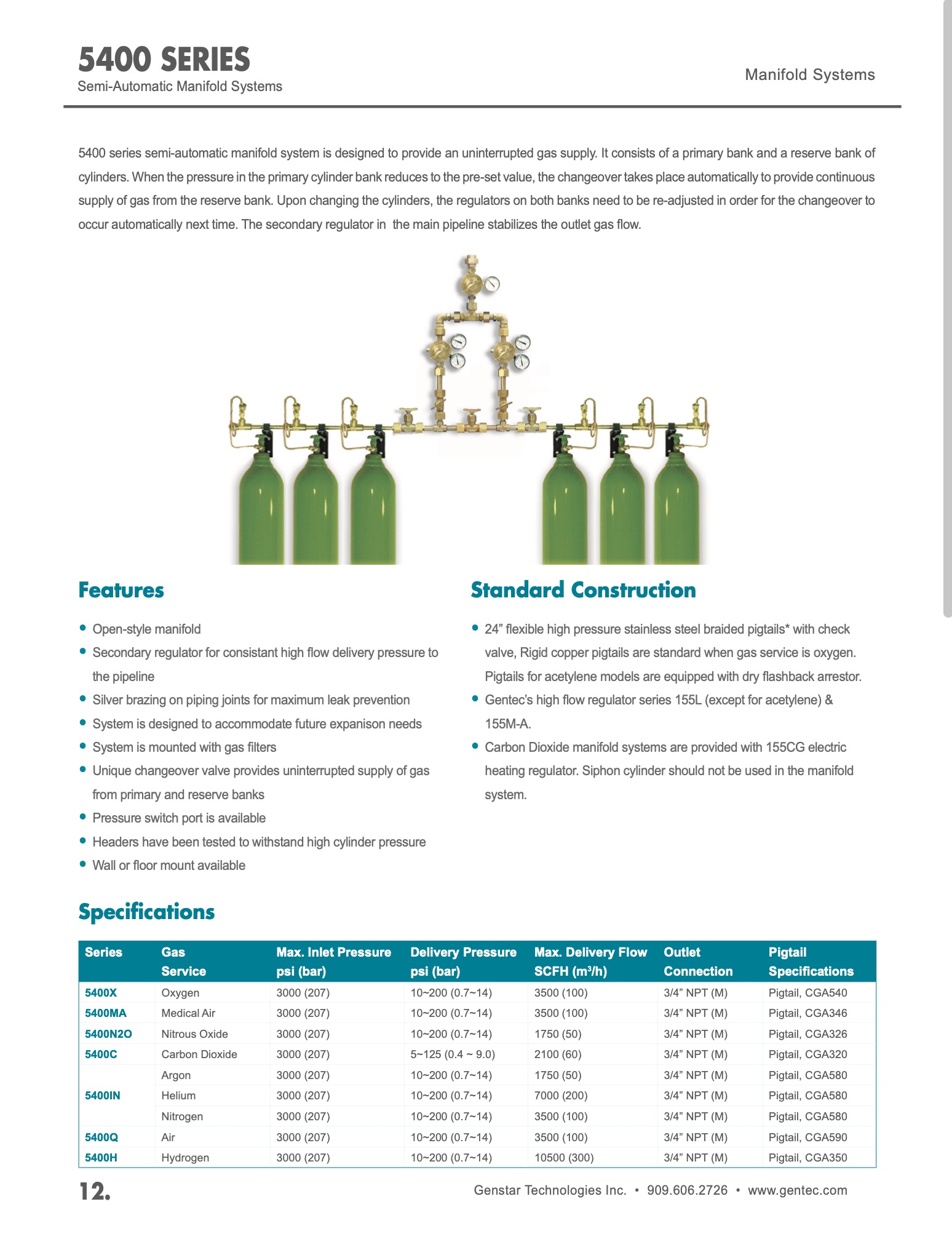

Semi-Automatic Manifold Systems
5400 series semi-automatic manifold system is designed to provide an uninterrupted gas supply. It consists of a primary bank and a reserve bank of cylinders. When the pressure in the primary cylinder bank reduces to the pre-set value, the changeover takes place automatically to provide continuous supply of gas from the reserve bank. Upon changing the cylinders, the regulators on both banks need to be re-adjusted in order for the changeover to occur automatically next time. The secondary regulator in the main pipeline stabilizes the outlet gas flow.
Features
• Open-style manifold
• Secondary regulator for consistant high flow delivery pressure to the pipeline
• Silver brazing on piping joints for maximum leak prevention
• System is designed to accommodate future expansion needs
• System is mounted with gas filters
• Unique changeover valve provides uninterrupted supply og gas from primary and reserve banks
• Pressure switch port available
• Headers have been tested to withstand high cylinder pressure
• Wall or floor mount available
Standard Constuction
• 24" flexible high pressure stainless steel braided pigtails with check valve. Rigid copper pigtails are standard when gas service is oxygen. Pigtails for acetylene models are equipped with dry flaskback arrestor.
• Gentec's high flow regulator series 155L (except for acetylene) & 155M-A.
• Carbon Dioxide manifold systems are provided with 155CG electric heating regulator. Siphon cylinder should not be used in the manifold system.
Inquire about this product
Hours
Phone
Fax
Address
Chino, CA 91710, USA

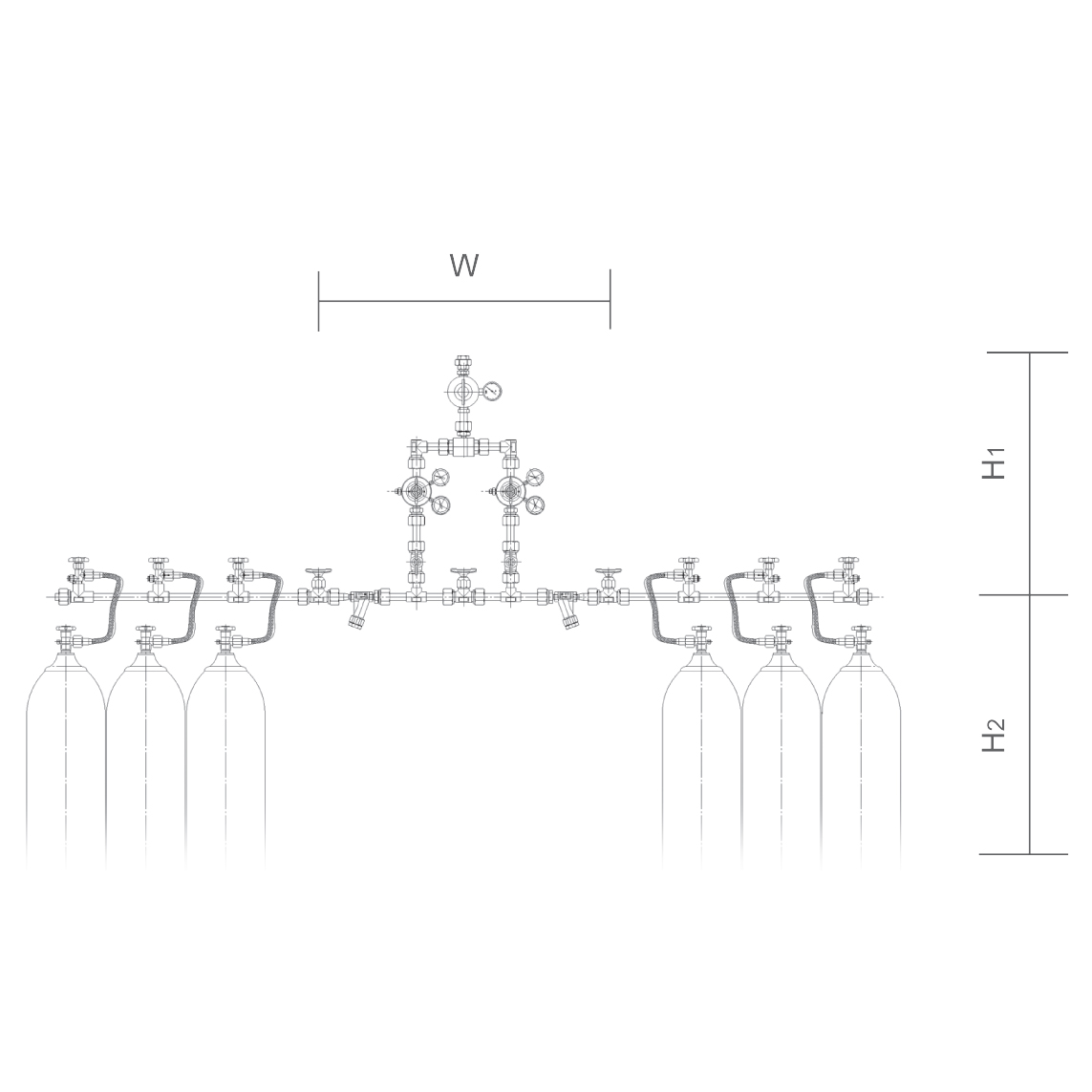

Ordering Information
| 54 | 1 | 2 | X | - 5L - 5R | - 1 |
| Series | Manifold System Layout | Cylinder Vavle Spacing | Gas Servicee | Number of Cylinders (left-hand / right-hand) | Type of Mounting |
| Semi-Automatic Manifold System | 1: Standard Layout 2: "L" Shape layout 3: "U" Shape layout 4: Crossover layout 5: Staggered layout | 1: 5" (127 mm) 2: 10" (254 mm) 3: 13" (330 mm) 4: 18" (457 mm) | X: Oxygen C: Carbon Dioxide IN: Ar, He, N2 Q: Air H: Hydrogen | 1L-2R: One cylinder on the left, Two cylinders on the right 5L-5R: Five cylinders on the left, Five cylinders on the Right
Note: Direction of piping (Right or Left) is indicated by facing the manifold. | 1: Wall mount 2: Floor Mount |
Specifications
| Series | Gas Service | Max. Inlet Pressure psi (bar) | Delivery Pressure psi (bar) | Max. Delivery Flow SCFH (m3/h) | Outlet Connection | Pigtail Specifications | |
| 5400X |
Oxygen |
3000 (207) |
10~200 (0.7~14) |
3500 (100) |
3/4” NPT (M) |
Pigtail, CGA540 | |
| 5400MA |
Medical Air |
3000 (207) |
10~200 (0.7~14) |
3500 (100) |
3/4” NPT (M) |
Pigtail, CGA346 | |
| 5400N2O |
Nitrous Oxide |
3000 (207) |
10~200 (0.7~14) |
1750 (50) |
3/4” NPT (M) |
Pigtail, CGA326 | |
| 5400C |
Carbon Dioxide |
3000 (207) |
5~125 (0.35~8.6) |
2100 (60) |
3/4” NPT (M) |
Pigtail, CGA320 | |
| 5400IN | Argon | 3000 (207) | 10~200 (0.7~14) | 1750 (50) | 3/4” NPT (M) | Pigtail, CGA580 | |
| 5400IN | Helium | 3000 (207) | 10~200 (0.7~14) | 7000 (200) | 3/4” NPT (M) | Pigtail, CGA580 | |
| 5400IN | Nitrogen | 3000 (207) | 10~200 (0.7~14) | 3500 (100) | 3/4” NPT (M) | Pigtail, CGA580 | |
| 5400Q | Air | 3000 (207) | 10~200 (0.7~14) | 3500 (100) | 3/4” NPT (M) | Pigtail, CGA590 | |
| 5400H | Hydrogen | 3000 (207) | 10~200 (0.7~14) | 10500 (300) | 3/4” NPT (M) | Pigtail, CGA350 | |
Restrictions
